| Solar Connector System |
PV Connector |
|
|

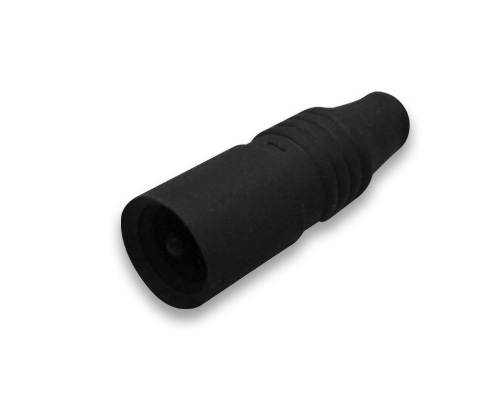

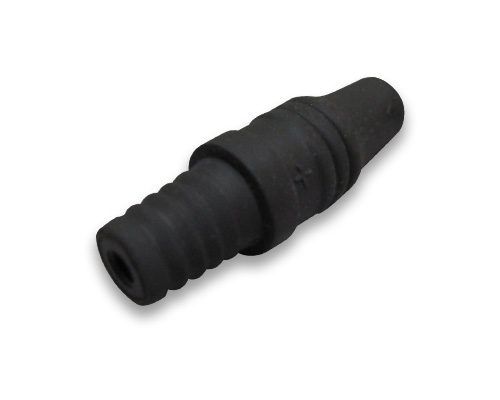

Connector System for Photovoltaic |
| |
| Type / module number |
| Size, mm (L x Ø) |
PV-P1_20, Positive |
| PV-J1_20, Negative |
| Conformity standards |
UL 1703 |
| EN 50521:2008 |
| Others |
| Rated voltages |
| Rated currents |
| Contact resistance |
| Wire size range (mm2) |
| Protection degree |
| Overvoltage category |
| Flammability class |
| Material |
Insulation |
| Contact |
| Retaining force of locking |
Connect - connect |
| Connect - cable |
| Ambient temperature |
| Limiting temperature |
| Note |
|

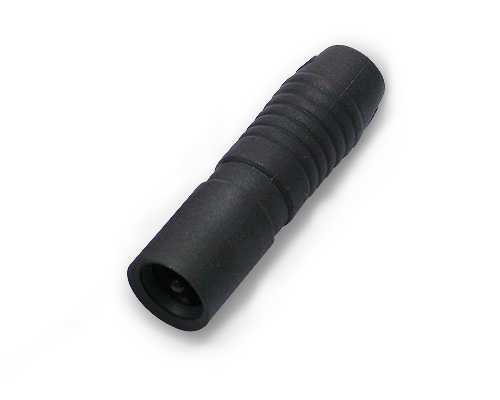

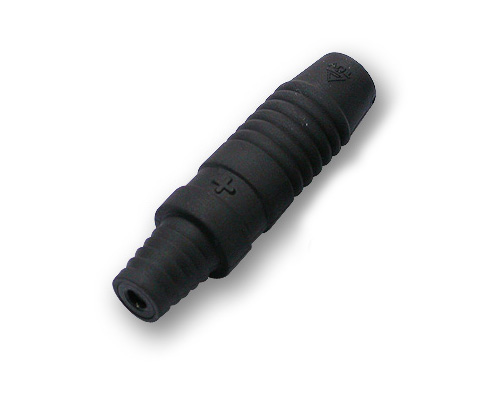

| PV-P1_20 & PV-J1_20 |
| 40.3 x 13.3 |
| 42.5 x 13.3 |
| Intend to apply |
| R 44 780 11 397245 |
| IEC61215, IEC 61646, IEC 61730 |
| DC 1000V (TUV) |
| 20A |
| ≦ 0.25 mΩ
|
| 2.5 & 4 |
| IP68(1.5m, 24hr) |
| III, 8kV |
| UL94-V0 |
| TPE/PA |
| Cu/Tin plated |
| ≧50kgf |
| ≧50kgf |
| -40~+85℃ |
| -40~+125℃ |
| Do not disconnect under load |
|
|
|
|
Connector System for Photovoltaic |
|
|
| Type / module number |
| Size, mm (L x Ø) |
PV-P1, Positive |
| PV-J1, Negative |
| Conformity standards |
UL 1703 |
| EN 50521: 2008 |
| Others |
| Rated voltages |
| Rated currents |
| Contact resistance |
| Wire size range (mm2) |
| Protection degree |
| Overvoltage category |
| Flammability class |
| Material |
Insulation |
| Contact |
| Insertion force |
| Withdrawal force |
| Ambient temperature |
| Limiting temperature |
| Note |
|
| PV-P1_35 & PV-J1_35 |
| 51.0 x 13.6 |
| 51.0 x 13.6 |
| Intend to apply |
| R 44 780 11 397245 |
| IEC61215, IEC 61646, IEC 61730 |
| DC 1000V (TUV) |
| 35A |
| ≦ 0.25 mΩ |
| 4 & 6 |
| IP68(1.5m, 24hr) |
| III, 8kV |
| UL94-V0 |
| TPE/PA |
| Cu/Tin plated |
| ≦50N |
| ≧50N |
| -40~+85℃ |
| -40~+125℃ |
| Do not disconnect under load |
|
|
|

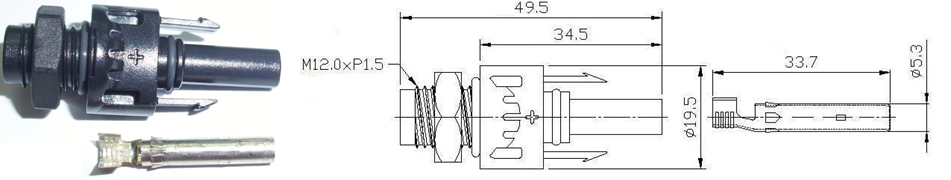

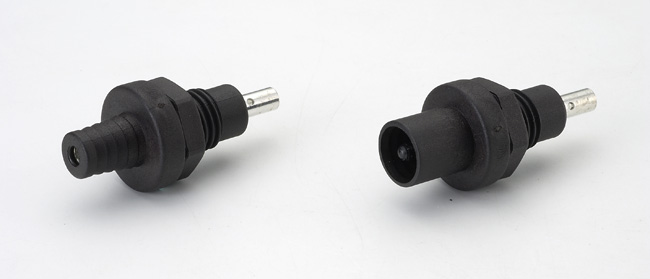

PV-P2_20 PV-J2_20
|
|
Connector System for Photovoltaic |
|
|
| Type / module number |
| Size, mm (L x Ø) |
PV-P2_20, Positive |
| PV-J2_20, Negative |
| Conformity standards |
UL 1703 |
| EN 50521:2008 |
| Others |
| Rated voltages |
| Rated currents |
| Contact resistance |
| Wire size range (mm2) |
| Protection degree |
| Overvoltage category |
| Flammability class |
| Material |
Insulation |
| Contact |
| Insertion force |
| Withdrawal force |
| Ambient temperature |
| Limiting temperature |
| Note |
|
| PV-P2_20 & PV-J2_20 |
| 45.5 x 20.0 |
| 45.5 x 20.0 |
| Intend to apply |
| R 44 780 11 397245 |
| IEC61215, IEC 61646, IEC 61730 |
| DC 1000V (TUV) |
| 20A |
| ≦ 0.25 mΩ |
| 2.5 & 4 |
| IP67(to the housing wall) |
| III, 8kV |
| UL94-V0 |
| PA |
| Cu/Tin plated |
| ≦50N |
| ≧50N |
| -40~+85℃ |
| -40~+125℃ |
| |
|
|
|
|

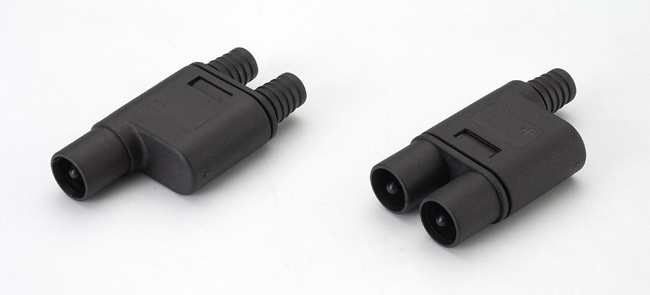

Connector System for Photovoltaic |
|
|
| Type / module number |
| Size, mm (L x Ø) |
PV-PJS3, Positive |
| PV-PJB3,Negative |
| Conformity standards |
UL 1703 |
| EN 50521:2008 |
| Others |
| Rated voltages |
| Rated currents |
| Contact resistance |
| Wire size range (mm2) |
| Protection degree |
| Overvoltage category |
| Flammability class |
| Material |
Insulation |
| Contact |
| Insertion force |
| Withdrawal force |
| Ambient temperature |
| Limiting temperature |
| Note |
|
| PV-PJS3 & PV-PJB3 |
| 55.5 x 28.5 |
| 55.5 x 28.5 |
| Intend to apply |
| R 44 780 11 397245 |
| IEC61215, IEC 61646, IEC 61730 |
| DC 1000V (TUV) |
| 20A |
| ≦ 0.25 mΩ |
| 2.5 & 4 & 6 |
| IP67 |
| III, 8kV |
| UL94-V0 |
| PA |
| Cu/Tin plated |
| ≦50N |
| ≧50N |
| -40~+85℃ |
| -40~+125℃ |
| |
|
|
|
|
|

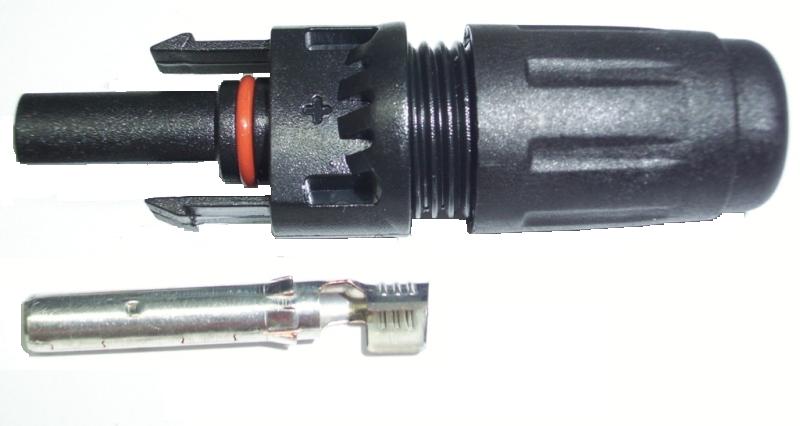

Connector System for Photovoltaic |
|
|
| Type / module number |
| Size, mm (L x Ø) |
PV2-P1H_25, Positive |
| PV2-J1H_25, Negative |
| Conformity standards |
UL 6703 |
| EN 50521:2008 |
| Others |
| Rated voltages |
| Rated currents |
| Contact resistance |
| Wire size range (mm2) |
| Protection degree |
| Overvoltage category |
| Flammability class |
| Pollution degree |
| Material |
Insulation |
| Contact |
| Retaining force of locking |
Connect - connect |
| Connect - cable |
| Ambient temperature |
| Limiting temperature |
| Note |
|
| PV2-P1H_25 & PV2-J1H_25 |
| 62.5 x 19.5 |
| 64.0 x 19.5 |
| E320476 |
| R 44 780 11 397226 |
| IEC61215, IEC 61646, IEC 61730 |
| DC 1000V (TUV), DC 600 (UL) |
| 25A |
| ≦ 0.2 mΩ
|
| 2.5 & 4 |
| IP68(1.5m, 24hr) |
| III, 8kV |
| UL94-5V/V0 |
| 3 |
| PC/PA 66 |
| Tin plated copper alloy |
| ≧20kgf |
| ≧20kgf |
| -40~+85℃ |
| -40~+125℃ |
| Do not disconnect under load |
|
|
|
|

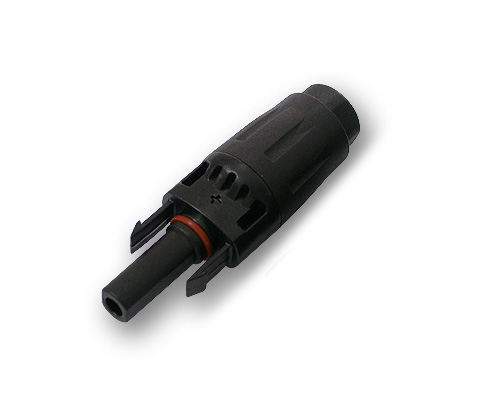

Connector System for Photovoltaic |
|
|
| Type / module number |
| Size, mm (L x Ø) |

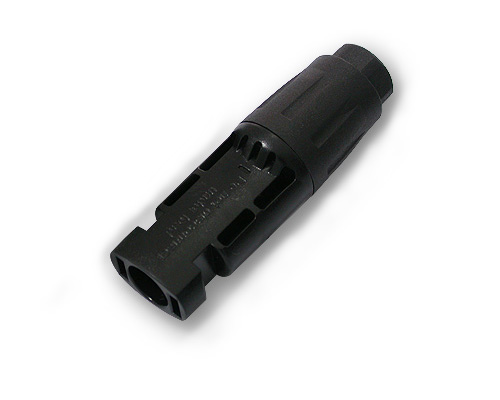

PV2-P1H_35, Positive |
| PV2-J1H_35, Negative |
| Conformity standards |
UL 6703 |
| EN 50521:2008 |
| Rated voltages |
| Rated currents |
| Contact resistance |
| Wire size range (mm2) |
| Protection degree |
| Overvoltage category |
| Flammability class |
| Pollution degree |
| Material |
Insulation |
| Contact |
| Retaining force of locking |
Connect - connect |
| Connect - cable |
| Ambient temperature |
| Limiting temperature |
| Note |
|
| PV2-P1H_35 & PV2-J1H_35 |
| 62.5 x 19.5 |
| 64.0 x 19.5 |
| E320476 |
| R 44 780 11 397226 |
| DC 1000V (TUV), DC 600 (UL) |
| 35A |
| ≦ 0.2 mΩ |
| 6 |
| IP68(1.5m, 24hr) |
| III, 8kV |
| UL94-5V/V0 |
| 3 |
| PC/PA 66 |
| Tin plated copper alloy |
| ≧20kgf |
| ≧20kgf |
| -40~+85℃ |
| -40~+125℃ |
| Do not disconnect under load |
|
|
|
|

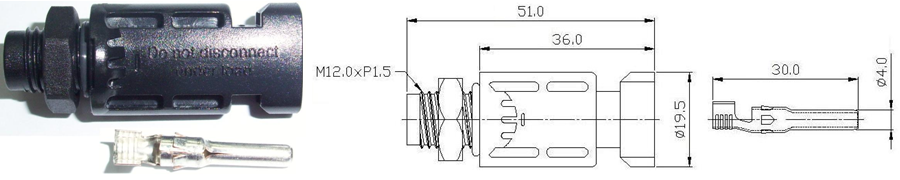

Connector System for Photovoltaic |
|
|
| Type / module number |
| Size, mm (L x Ø) |
PV2-P1H_35, Positive |
| PV2-J1H_35, Negative |
| Conformity standards |
UL 6703 |
| EN 50521:2008 |
| Rated voltages |
| Rated currents |
| Contact resistance |
| Wire size range (mm2) |
| Protection degree |
| Overvoltage category |
| Flammability class |
| Material |
Insulation |
| Contact |
| Retaining force of locking |
Connect - connect |
| Connect - cable |
| Ambient temperature |
| Limiting temperature |
| Note |
|
| PV2-P2 & PV2-J2 |
| 62.5 x 19.5 |
| 64.0 x 19.5 |
| E320476 |
| R 44 780 11 397226 |
| DC 1000V (TUV),DC 600V (UL) |
| 35A |
| ≦ 0.2 mΩ |
| 2.5 & 4 & 6 |
| IP67 |
| III, 8kV |
| UL94-5V/V0 |
| PC/PA 66 |
| Tin plated copper alloy |
| ≧20kgf |
| ≧20kgf |
| -40~+85℃ |
| -40~+125℃ |
| Do not disconnect under load |
|
|
