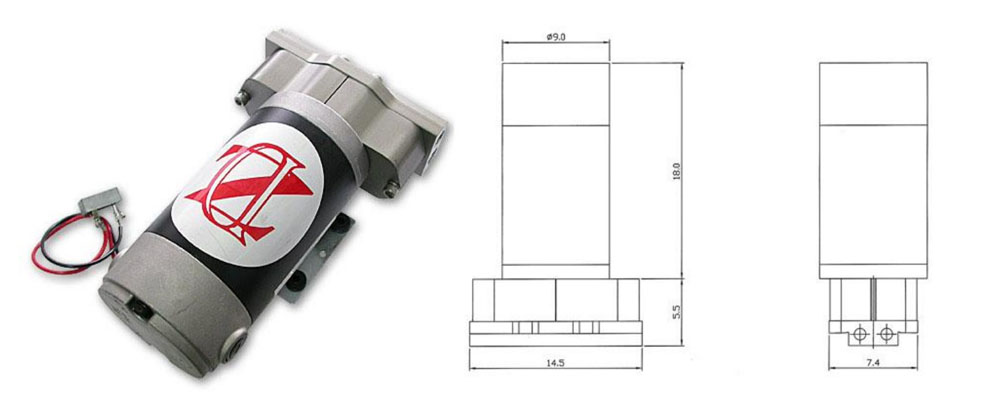

ZD-DC 110
ZD-DC 220 |
Description |
|
Working Pressure: 70kg/cm2(1000psi)
| Flow Rate： |
1.2 L / min |
| ZD-DC 110V |
| Thermistor： |
85 degrees C |
| Motor： |
Permanent magnet DC brush motor, Totally enclosed, with two brush (replaceable). |
| Life time： |
approx 4000hr (pump head) |
| Weight： |
5.70kgs |
| No load： |
| Amp： |
0.34 A |
| W： |
37.5 W |
| RPM： |
2020 RPM |
| Full load: |
| Amp： |
2.15 A |
| W： |
178W output |
| RPM： |
1820 RPM |
| Kg-cm： |
9.5 |
| ZD-DC 220V |
| Thermistor： |
85 degrees C |
| Motor： |
Permanent magnet DC brush motor, Totally enclosed, with two brush (replaceable). |
| Life time： |
approx 4000hr (pump head) |
| Weight： |
5.70kgs |
| No load： |
| Amp： |
0.158 A |
| W： |
35W |
| RPM： |
1960 RPM |
| Full load: |
| Amp： |
0.98 A |
| W： |
167W output |
| RPM： |
1800 RPM |
| Kg-cm： |
9.0 |
|
|
|

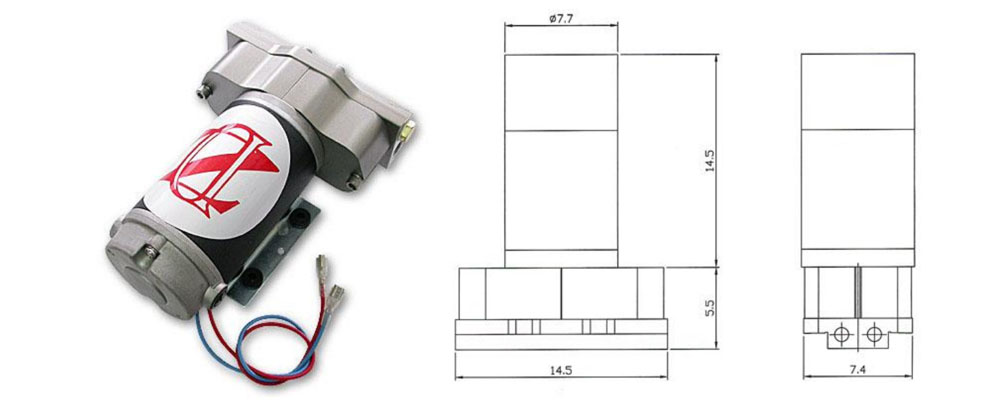

ZDM-DC 110
ZDM-DC 220 |
Description |
|
Working Pressure: 70kg/cm2(1000psi)
| Flow Rate： |
0.6 L / min |
| ZDM-DC 110V |
| Thermistor： |
85 degrees C |
| Motor： |
Permanent magnet DC brush motor, Totally enclosed, with two brush (replaceable). |
| Life time： |
approx 4000hr (pump head) |
| Weight： |
3.50kgs |
| No load： |
| Amp： |
0.317 A |
| W： |
35W |
| RPM： |
1900 RPM |
| Full load: |
| Amp： |
1.38 A |
| W： |
97.5W output |
| RPM： |
1597 RPM |
| Kg-cm： |
6.0 |
| ZDM-DC 220V |
| Thermistor： |
85 degrees C |
| Motor： |
Permanent magnet DC brush motor, Totally enclosed, with two brush (replaceable). |
| Life time： |
approx 4000hr (pump head) |
| Weight： |
3.50kgs |
| No load： |
| Amp： |
0.149 A |
| W： |
33W |
| RPM： |
1920 RPM |
| Full load: |
| Amp： |
0.69 A |
| W： |
101W output |
| RPM： |
1643 RPM |
| Kg-cm： |
6.0 |
|
|
|

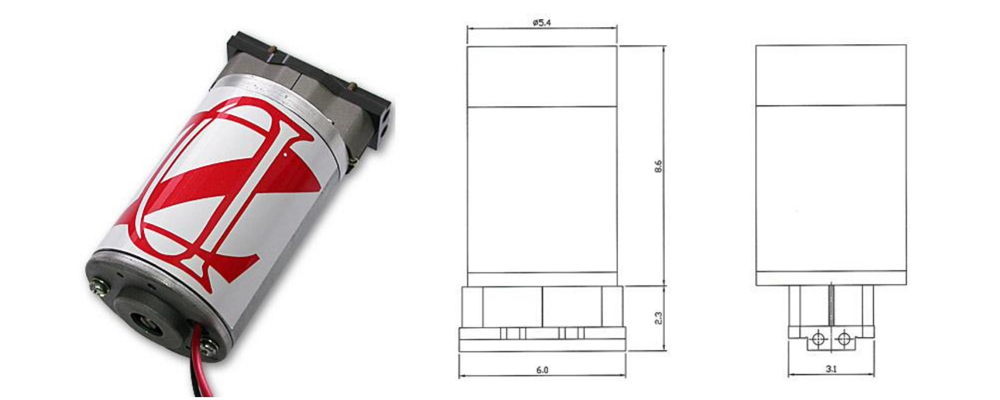

ZDS-DC 12 |
Description |
|
Working Pressure: 70kg/cm2(1000psi)
| Flow Rate： |
0.2 L / min |
| Thermistor： |
85 degrees C |
| Motor： |
Permanent magnet DC brush motor, Totally enclosed, with two brush (irreplaceable). |
| Life time： |
approx 2000hr (pump head) |
| Weight： |
0.9kgs |
| No load： |
| Amp： |
0.773 A |
| W： |
7W |
| RPM： |
2470 RPM |
| Full load: |
| Amp： |
2.26 A |
| W： |
16W output |
| RPM： |
1980 RPM |
| Kg-cm： |
0.8 |
|
|
