Fogging Nozzle System
CX Ceramic-head Nozzle
Item No.
 Description Size
CX55CN-NBR-0.15
 Brass Nickel-Plated
Ceramic-head nozzle
NBR Oring & Anti-drop		 0.15mm/0.006"
CX55CN-NBR-0.20
 0.20mm/0.008"
CX55CN-NBR-0.30
 0.30mm/0.012"

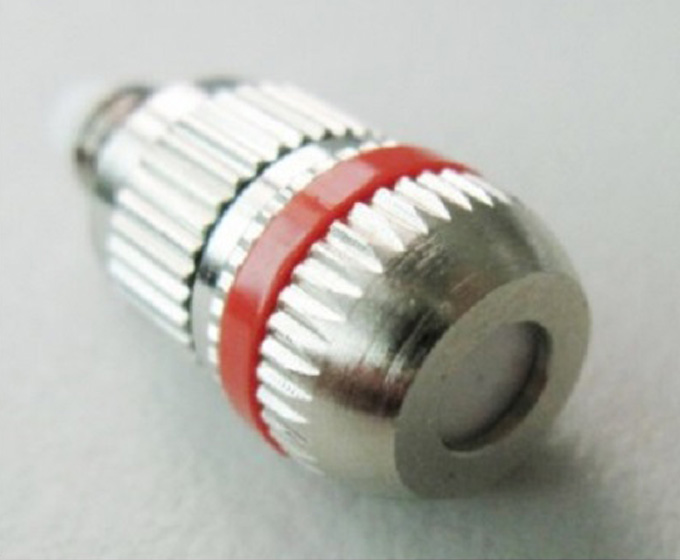

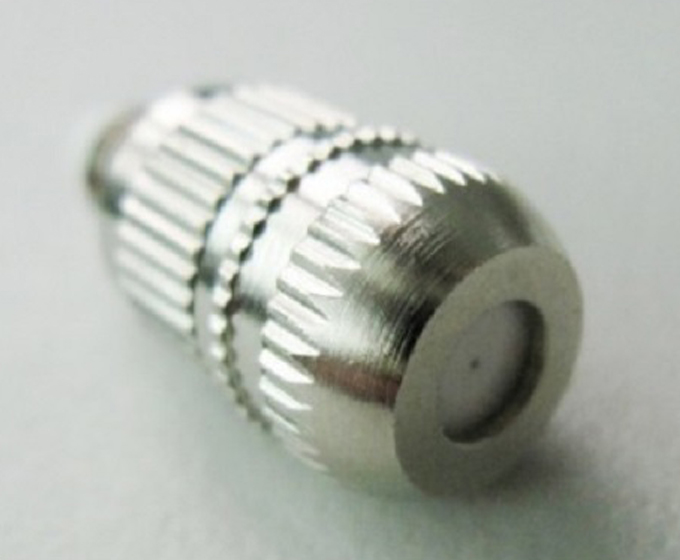

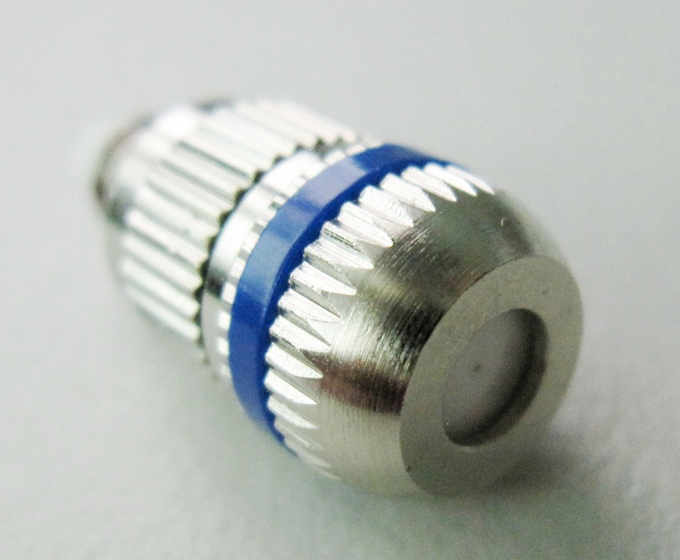

0.15mm 0.20mm 0.30mm

Flow rate chart for Ceramic head nozzle (cc/min) ±10%

orifice dia.\   pressure(psi/kg)
 1000/70 700/49 400/28
0.15mm (0.0059")
 49cc 39cc 23cc
0.20mm (0.0079")
 70cc 53cc 32cc
0.30mm (0.0118")
 117cc 92cc 52cc
